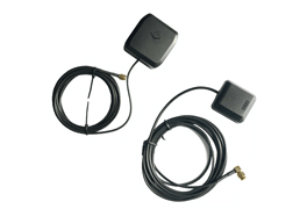

Series： External Navigation Antennas
Application：positioning, navigation, and timing.

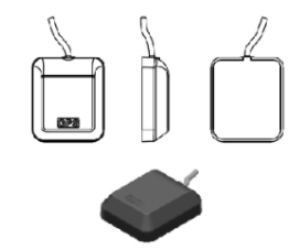

| Antenna Performance | Frequency | GPS-L1 |
|---|---|---|
| Impedance | 50Ω | |
| Polarization | RHCP | |
| Axis Ratio | ≦3dB | |
| Typical Gain | 2.5dBi | |
| VSWR(Output) | <2.0 | |
| LNA | Gain | 32±2dB |
| Noise Figure | <1.2 | |
| Operating Voltage | 3-5VDC | |
| Operating Current | 8-10mA | |
| In Band Flatness | ±2dB | |
| Structure | Outline Dimension | 43×37×13.6mm |
| Cable | RG-174 or others | |
| Connector | SMA or others | |
| Operating Environment | Operating Temper. | -40℃~+85℃ |
| Storage Temper. | -55℃~+85℃ | |
| Ingress Protection | Ip66 | |
| Relative Humidity | 95% non-condensing |

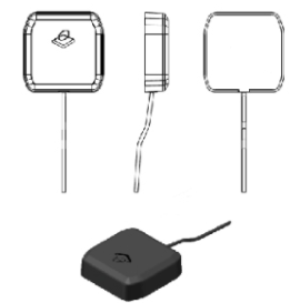

| Antenna Performance | Frequency | GPS-L1 |
| Impedance | 50Ω | |
| Polarization | RHCP | |
| Axis Ratio | ≦3dB | |
| Typical Gain | 5.0dBi | |
| VSWR(Output) | <2.0 | |
| LNA | Gain | 32±2dB |
| Noise Figure | <1.2 | |
| Operating Voltage | 3-5VDC | |
| Operating Current | 8-10mA | |
| In Band Flatness | ±2dB | |
| Structure | Outline Dimension | 61×61×18mm |
| Cable | RG-174 or others | |
| Connector | SMA or others | |
| Operating Environment | Operating Temper. | -40℃~+85℃ |
| Storage Temper. | -55℃~+85℃ | |
| Ingress Protection | Ip66 | |
| Relative Humidity | 95% non-condensing |
Specifications
| Part Number | Frequency | Axial Ratio | Antenna Gain | Noise Figure | VSWR | Current@3V | LNA Gain | Flatness | Size | Cable |
|---|---|---|---|---|---|---|---|---|---|---|
| SS001 | GPS-L1 | ≤3db | 2.5dBi | <2.2db | <2.0 | 11.2mA | 26dB | ±2db | 43*37*13.6mm | RG-174+SMA |
| SS002 | GPS-L1 | ≤6db | 2.5dBi | <2.2db | <2.0 | 11.2mA | 26dB | ±2db | ||
| BDS-B1 | ≤6db | 2.5dBi | <2.2db | <2.0 | 11.2mA | 26dB | ±2db | |||
| SS005 | GPS-L1 | ≤8db | 2.0dBi | <2.2db | <2.0 | 11.2mA | 26dB | ±2db | ||
| GL-L1 | ≤10db | 1.5dBi | <2.2db | <2.0 | 11.2mA | 26dB | ±2db | |||
| SS010 | GPS-L1 | ≤3db | 2.5dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | 43*37*13.6mm | RG-174+SMA |
| SS011 | GPS-L1 | ≤6db | 2.5dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | ||
| BDS-B1 | ≤6db | 2.5dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | |||
| SS012 | GPS-L1 | ≤8db | 2.0dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | ||
| GL-L1 | ≤10db | 1.5dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | |||
| SS006 | GPS-L1 | ≤3db | 5.0dBi | <2.2db | <2.0 | 11.2mA | 26dB | ±2db | 61*61*18mm | RG-174+SMA |
| SS007 | GPS-L1 | ≤3db | 5.0dBi | <2.2db | <2.0 | 11.2mA | 26dB | ±2db | ||
| BDS-B1 | ≤3db | 5.0dBi | <2.2db | <2.0 | 11.2mA | 26dB | ±2db | |||
| SS009 | GPS-L1 | ≤6db | 5.0dBi | <2.2db | <2.0 | 11.2mA | 26dB | ±2db | ||
| GL-L1 | ≤8db | 5.0dBi | <2.2db | <2.0 | 11.2mA | 26dB | ±2db | |||
| SS020 | GPS-L1 | ≤3db | 5.0dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | 61*61*18mm | RG-174+SMA |
| SS021 | GPS-L1 | ≤3db | 5.0dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | ||
| BDS-B1 | ≤3db | 5.0dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | |||
| SS022 | GPS-L1 | ≤8db | 5.0dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | ||
| GL-L1 | ≤10db | 5.0dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | |||
| SS023 | BDS-B1 | ≤3db | 5.0dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | 61*61*18mm | RG-174+SMA |
| SS025 | GLONASS-L1 | ≤3db | 5.0dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | ||
| SS026 | BDS-B1 | ≤3db | 3.0dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | ||
| GPS-L1 | ≤3db | 3.0dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db | |||
| GLONASS-L1 | ≤3db | 2.5dBi | <1.2db | <2.0 | 8.4mA | 32dB | ±2db |
