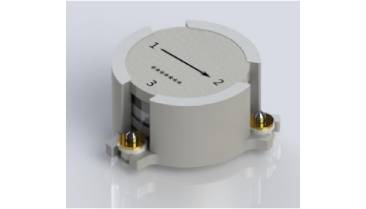

SMD Isolators/Circulators
| Operating frequency (GHz) | Bandwidth (MHz) | Insertion Loss (dB) Max | Isolation (dB) Min | VSWR Max | Model series | Passing Power /Reflected Power (W) | Outline dimensions ΦD*H (mm) | Operating temperature (℃) | Connection method |
| 0.7~1.0 | 85 | 0.2 | 25 | 1.12 | BKHGS2020-**/ BKHHS2097-** | 100 | Φ26.55*10 | -40-85 | SMD |
| 127.5 | 0.25 | 23 | 1.15 | 100 | Φ26.55*10 | -40-85 | SMD | ||
| 1.0~1.5 | 125 | 0.2 | 25 | 1.12 | BKHGS 2021-** | 100 | Φ20.4*8 | -40-85 | SMD |
| 187.5 | 0.25 | 23 | 1.15 | 100 | Φ20.4*8 | -40-85 | SMD | ||
| 1.5~2.0 | 175 | 0.2 | 25 | 1.12 | BKHHS 2098-** | 100 | Φ18*8 | -40-85 | SMD |
| 262.5 | 0.25 | 23 | 1.15 | 100 | Φ18*8 | -40-85 | SMD | ||
| 2.0~4.0 | 300 | 0.25 | 25 | 1.12 | BKHHS 2099-** | 50 | Φ15.5*7 | -40-85 | SMD |
| 450 | 0.3 | 23 | 1.15 | 50 | Φ15.5*7 | -40-85 | SMD | ||
| 4.0~6.0 | 10 | 0.25 | 23 | 1.15 | BKHGS 2022-** | 20 | Φ12.5*7 | -40-85 | SMD |
| 20 | 0.3 | 21 | 1.25 | 20 | Φ12.5*7 | -40-85 | SMD | ||
Note: The above index data are typical values, and the test temperature is room temperature (25℃). | |||||||||
