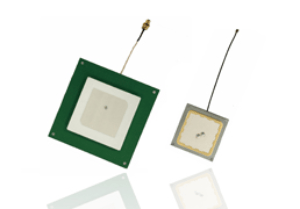

Series： RFID Internal Antenna Modules
Application：UHF RFID Radio

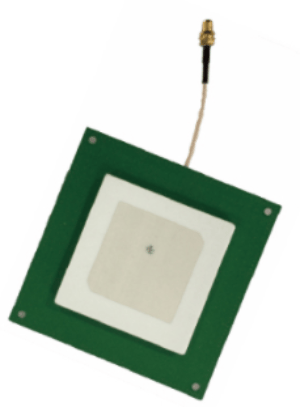

| Antenna Performance | Frequency | 902-928MHz |
| Impedance | 50Ω | |
| Polarization | RHCP | |
| Typical Gain | 5.0dBi | |
| VSWR(Output) | <2.0 | |
| Impedance Bandwidth | >20MHz | |
| Elevation Coverage | 360° | |
| 3dB angle | 90° | |
| Structure | Antenna Size | 78×78×6.5mm |
| GND Size | 120×120mm | |
| Cable | RG316 or others | |
| Connector | SMA or others | |
| Operating Environment | Operating Temper. | -40℃~+75℃ |
| Storage Temper. | -55℃~+75℃ | |
| Relative Humidity | 95% non-condensing |

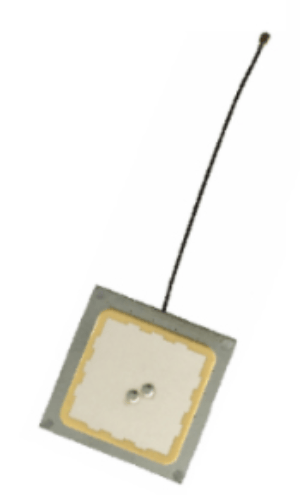

| Antenna Performance | Frequency | 902-928MHz |
| Impedance | 50Ω | |
| Polarization | RHCP | |
| Typical Gain | 3.0dBi | |
| VSWR(Output) | <2.0 | |
| Impedance Bandwidth | >20MHz | |
| Elevation Coverage | 360° | |
| 3dB angle | 90° | |
| Structure | Antenna Size | 40×40×5mm |
| GND Size | 50×50mm | |
| Cable | RF1.13 or others | |
| Connector | IPEX or others | |
| Operating Environment | Operating Temper. | -40℃~+75℃ |
| Storage Temper. | -55℃~+75℃ | |
| Relative Humidity | 95% non-condensing |
